SLS 3D Printer

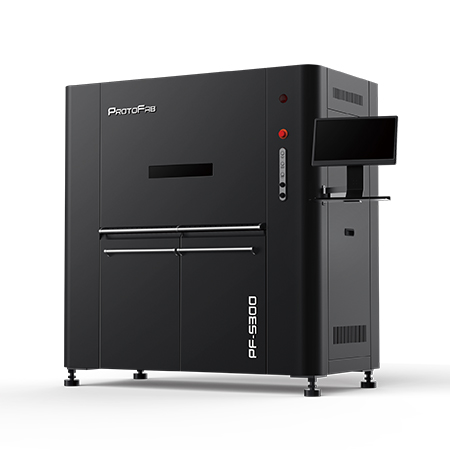

Affordable SLS 3D Printer For Sale - ProtoFab PF-S300

  • EFFICIENCY EFFICIENCY

    Combining scan speed of up to 15.2 m/s with a high efficiency roller system and convenient removable powder cartridge system, the PF-S300 offers increased productivity and lower price per part.
  • ACCURACY ACCURACY

    The PF-S300 series' powerful eight-zone heater & intelligent thermal control systems allows for best in class temperature regulation enabling less deformation and increased accuracy in final parts.
  • HIGH TEMPERATURE HIGH TEMPERATURE

    The PF-S300 series is offered in a high-temperature-capable configuration. Enhanced temperature shielding, laser power and thermal controls enable the PF-S300 to process high-performance materials, such as PA6, for direct-use applications.
  • OPEN PLATFORM OPEN PLATFORM

    ProtoFab is the laser sintering system producer that allows for complete freedom of operation of its machines. This means that machine parameters and powder choice are unlocked for the user allowing for previously-impossible levels of freedom and flexibility when it comes to PLS production.



  • Specification

    Exterior Size (W*D*H)

    2000*1000*2050mm (78.74*39.37*80.71in)

    Molding Cylinder Size (W*D*H)

    302*302*542mm (11.89*11.89*21.34 in)

    Build Size(W*D*H)

    300*300*350mm (11.81*11.81*13.78 in)

    Volume Build [email protected] layer thickness

    Up to 4 L/Hour

    Scanning Speed

    15.2m/s(598.42in/s)

    Scan Spacing

    0.15-0.30mm (0.006-0.012in)

    Layer thickness (typical)

    0.06-0.12mm(0.1mm)/0.002-0.004in(0.004in)

    Precision optics

    F-theta-lens

    Laser Type

    100W Co2

    Laser beam size

    450um

    Laser Window

    Removable, Easy to clean

    Powder Feed Mode

    Bi-directional powder feed system with two feed cylinder

    Powder Delivery

    Modular recoating system: precision counter-ratating roller (standard) or linear blade (optional)

    Max Chamber Temperature

    200C(392F)

    Thermal Field Control

    Ten independent heaters with four IR sensor & intelligent temperature control systems

    Power Requirements

    2.1KW 6.7KW Max

    Key Software Features

    Slicing on the fly

    Temperature Regulation

    Continuous real-time build surface temperature monitoring &optimization

    Compatible Materials

    Nylon, carbon fiber composite nylon power, glass fiber composite nylon powder, etc.
