The 3D Printing Architectural Model Villa of ProtoFab is Three-dimensional and Vivid, Presenting the Design Concept Perfectly

3D printing building model villa

Product Name: 3D printing building model villa
Process: SLA rapid prototyping + post-processing
Printing material: white photosensitive resin
Purpose: appearance design
Service provider: ProtoFab 3D printing
Printer type: ProtoFab SLA600 DLC
Production cycle: 1 day

Project background
The application of 3D printing technology in the construction industry has a wide range of functions. It provides a powerful technical means for architects to design and build dynamic and complex forms, and has a subversive impact on the design of the construction industry. The architectural model is to express the architectural art in the way of miniaturization, to express the structure of architectural thought truthfully, and to transform the intention of the architect into a specific image. SLA technology is the most widely used technology in the field of 3D printing. No matter how complex the design model is, as long as there is relevant 3D data, 3D printers can be manufactured accurately.

Production process
1. The designer creates a scaled down building model through 3D software and exports STL format data

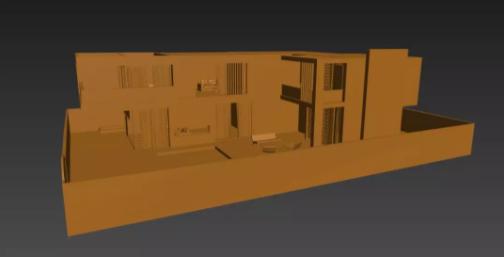

3D modeling diagram
3D modeling diagram

2. Import the file into the magic software for slicing

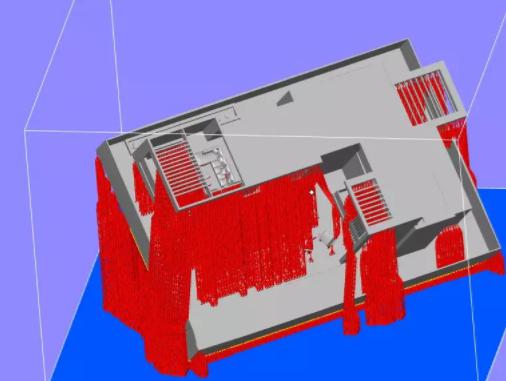

Necessary support for the model
Necessary support for the model

3. Import the processed 3D files into Westin high-speed intelligent SLA light curing 3D printer sla600 DLC for 3D printing molding and curing, with integrated molding, fast printing speed, high precision, and good surface quality.

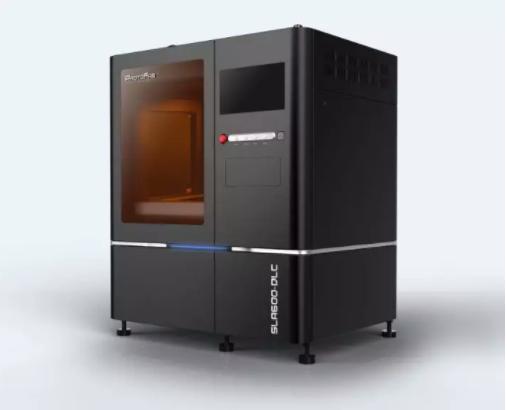

SLA light curing 3D printer sla600 DLC

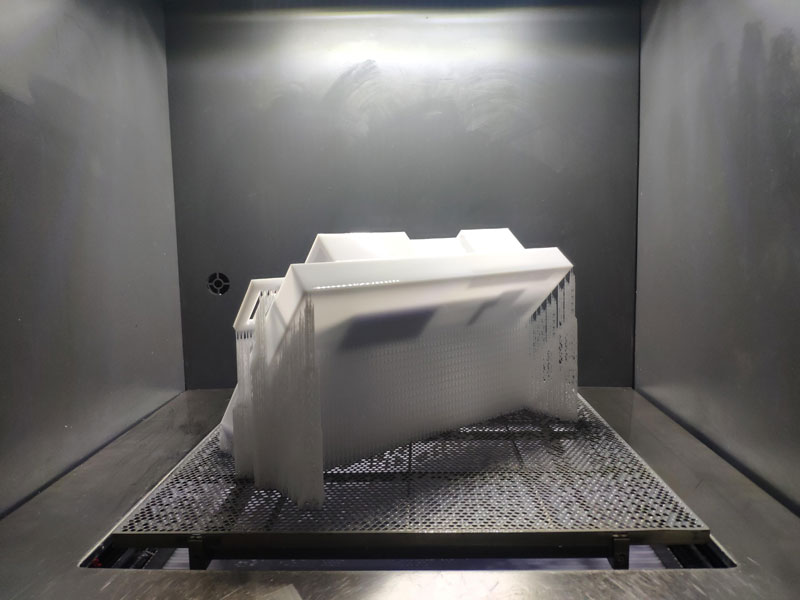

Printing in Machine

4. Fine post-treatment (polishing, painting and coloring)
After polishing and coloring, the texture of the model is even, rich and modern

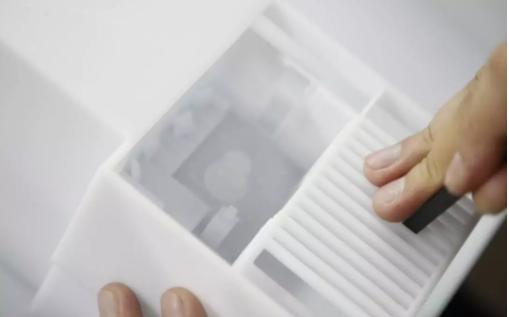

File removal of support residue on model surface
File removal of support residue on model surface

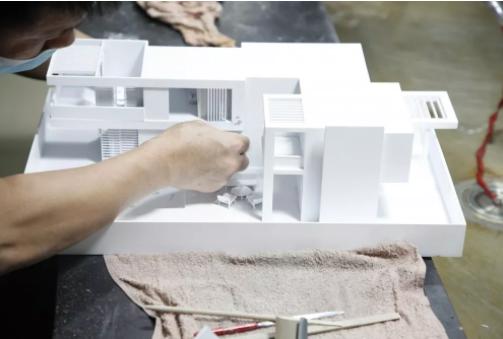

Sandpaper from coarse to fine layers
Sandpaper from coarse to fine layers

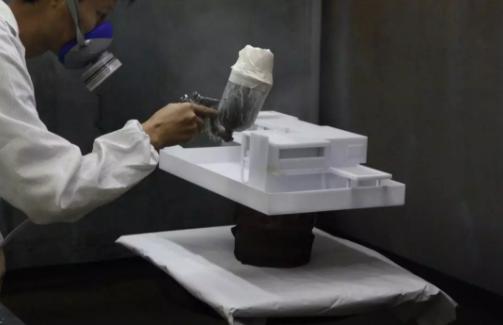

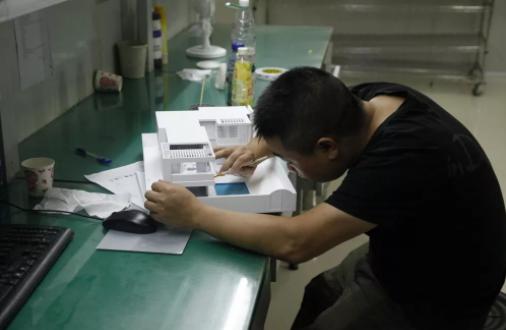

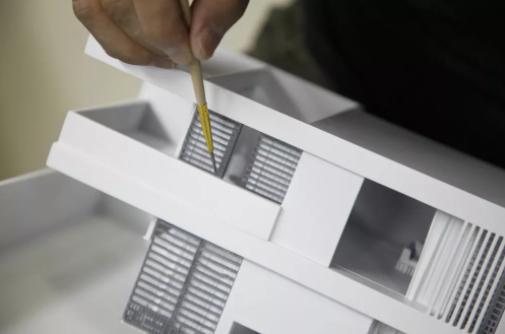

Spray paint

Spray paint

Spray paint
Spray paint

5. 3D printing of the full picture of the building model, exquisite display of finished products

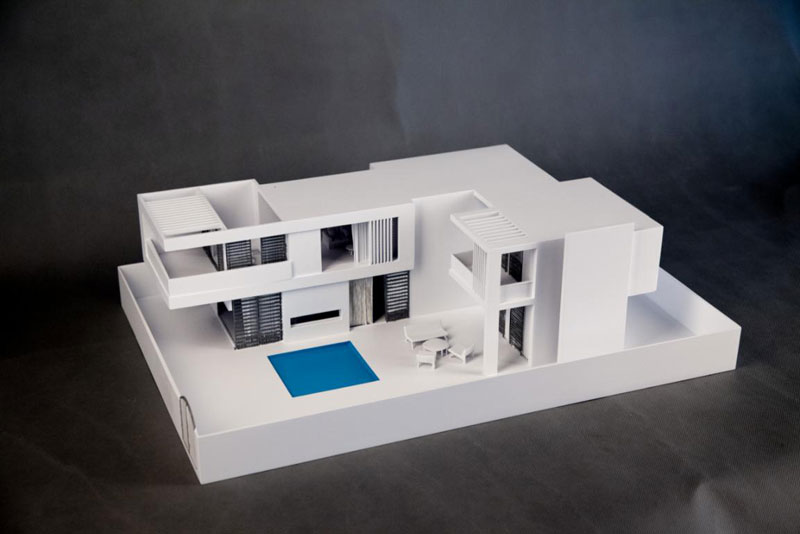

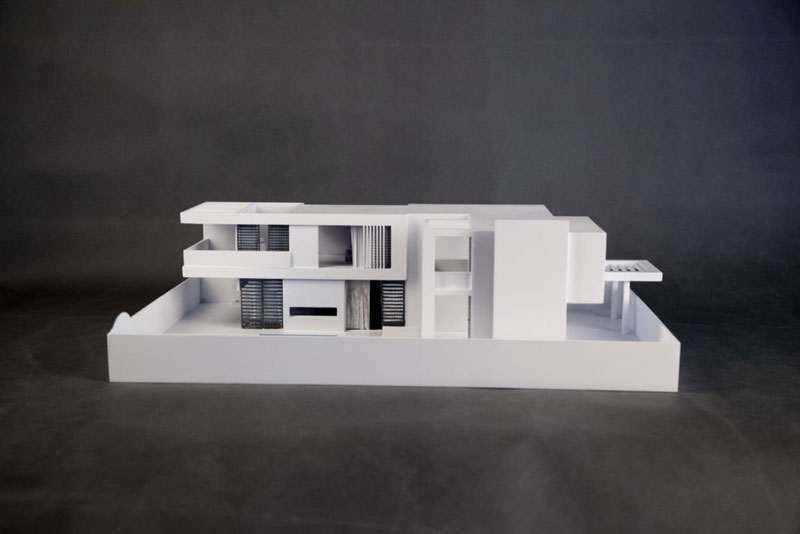

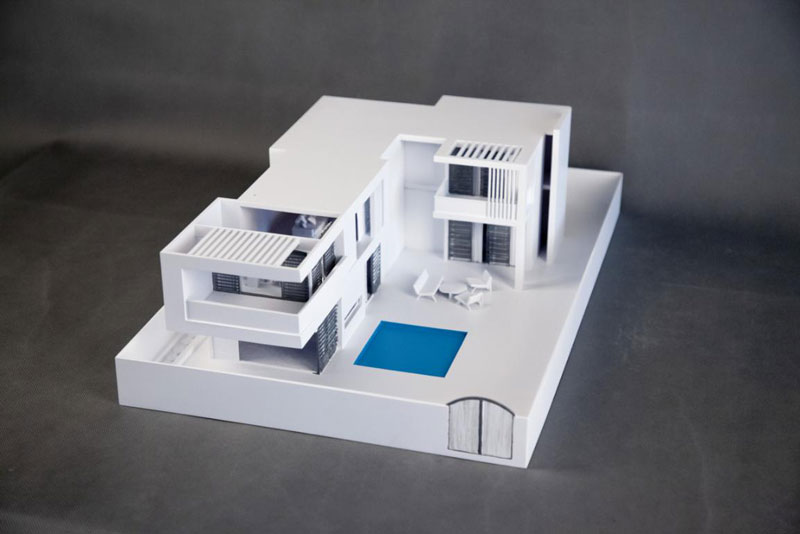

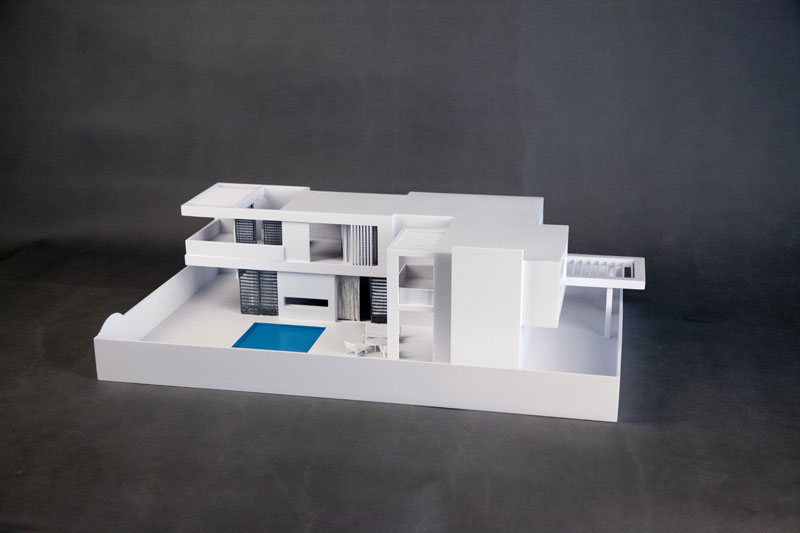

finished products

finished products

finished products

finished products

6. The 3D printing model can truly reproduce the structure and design of the building, making the building itself more persuasive. The furniture is complete, and the details are highly restored.

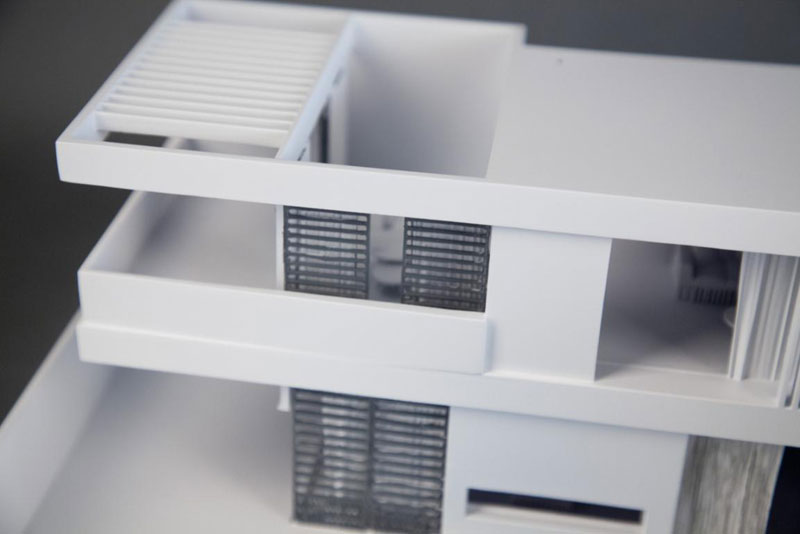

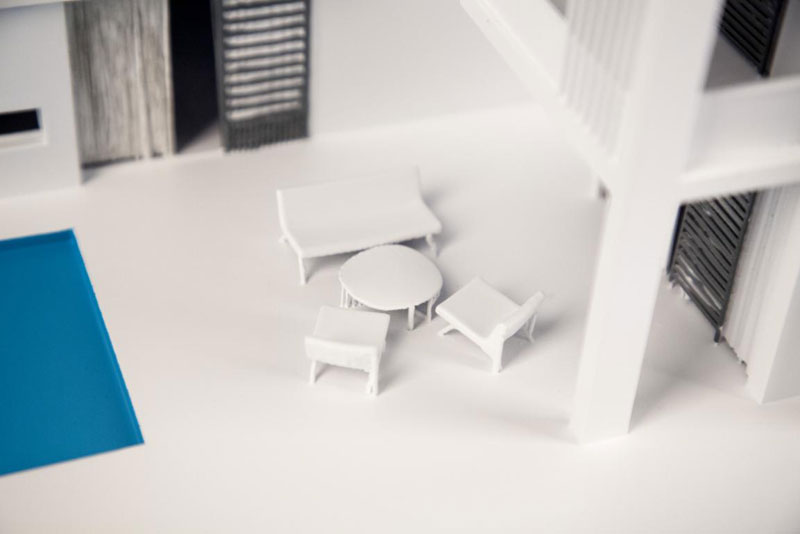

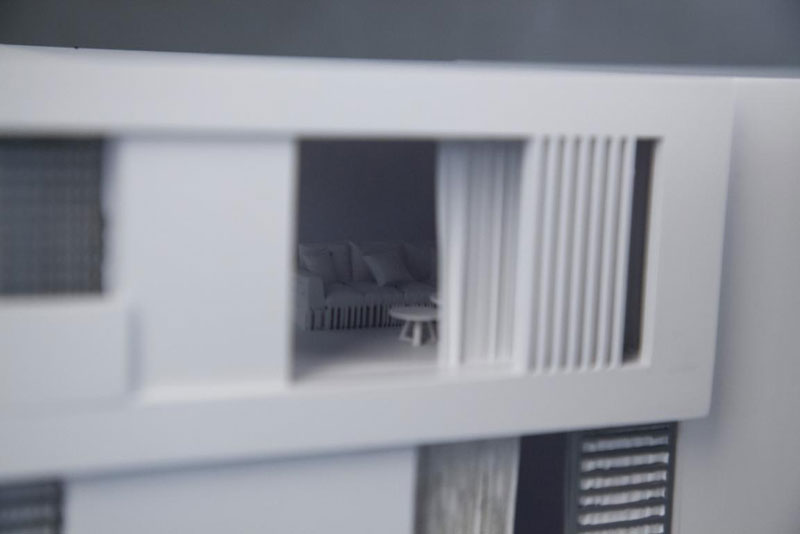

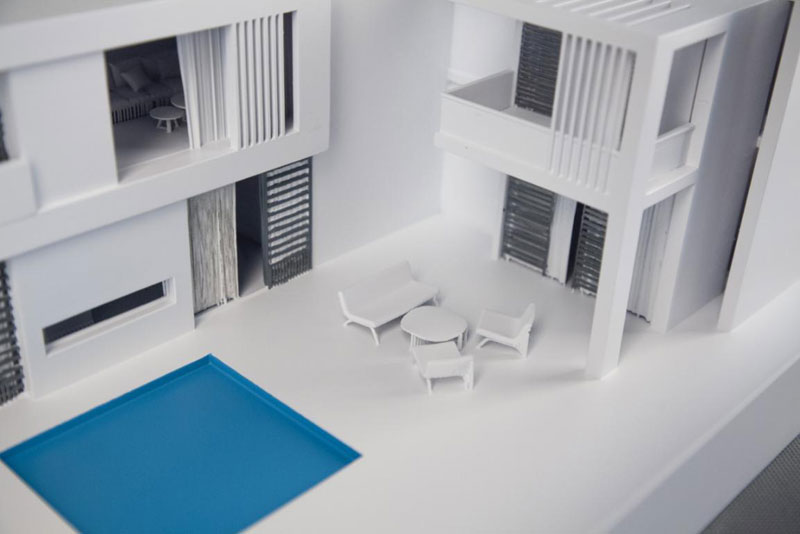

3D printing model

3D printing model

3D printing model

3D printing model

Conclusion:
3D printing architecture model is fast, intuitive, and it is of low cost, environmental protection, and can print almost all complex geometry. It has been accepted by more and more people in the industry for its exquisite production, high detail reduction and large amount of material saving  ProtoFab can help customers quickly verify the product appearance structure, and help customers achieve high-quality sample manufacturing and rapid manufacturing. If you have the above requirements, please contact us!
